Description

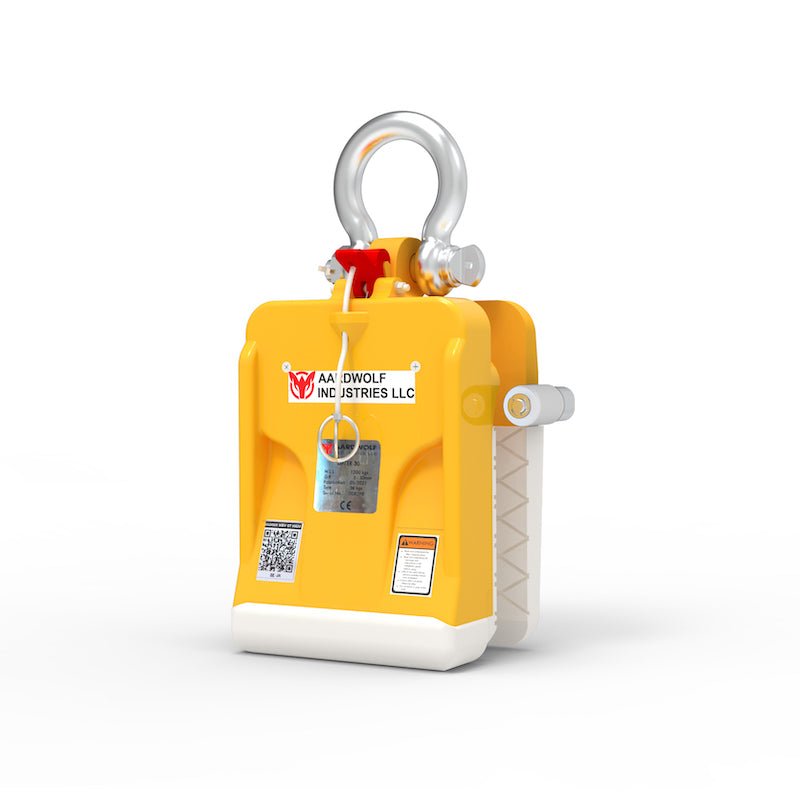

The Aardwolf Slab Billet Clamp utilizes gravity to grip and release materials.
The machine is used for handling marble and granite slabs from the billet saw.
Features
- A gravity hoisting device is used to control the opening and closing of the clamp
- The clamp has one movable jaw, which is lined with rubber
- The clamp uses the weight of the load to generate a closing force and the friction generated by the clamping force to clamp the slabs
Specifications
| Metric (mm-kg) | Imperial (inch-lb) | |
| Grip range | 5 – 60 | 0.2″ – 2″ |
| Working load limit | 200 | 441 |
| Net weight | 16 | 35 |
| Gross weight | 17 | 38 |
| Packaging dimensions | L.570xW.185xH.320 | 22.4″x7.3″x12.6″ |
