Description

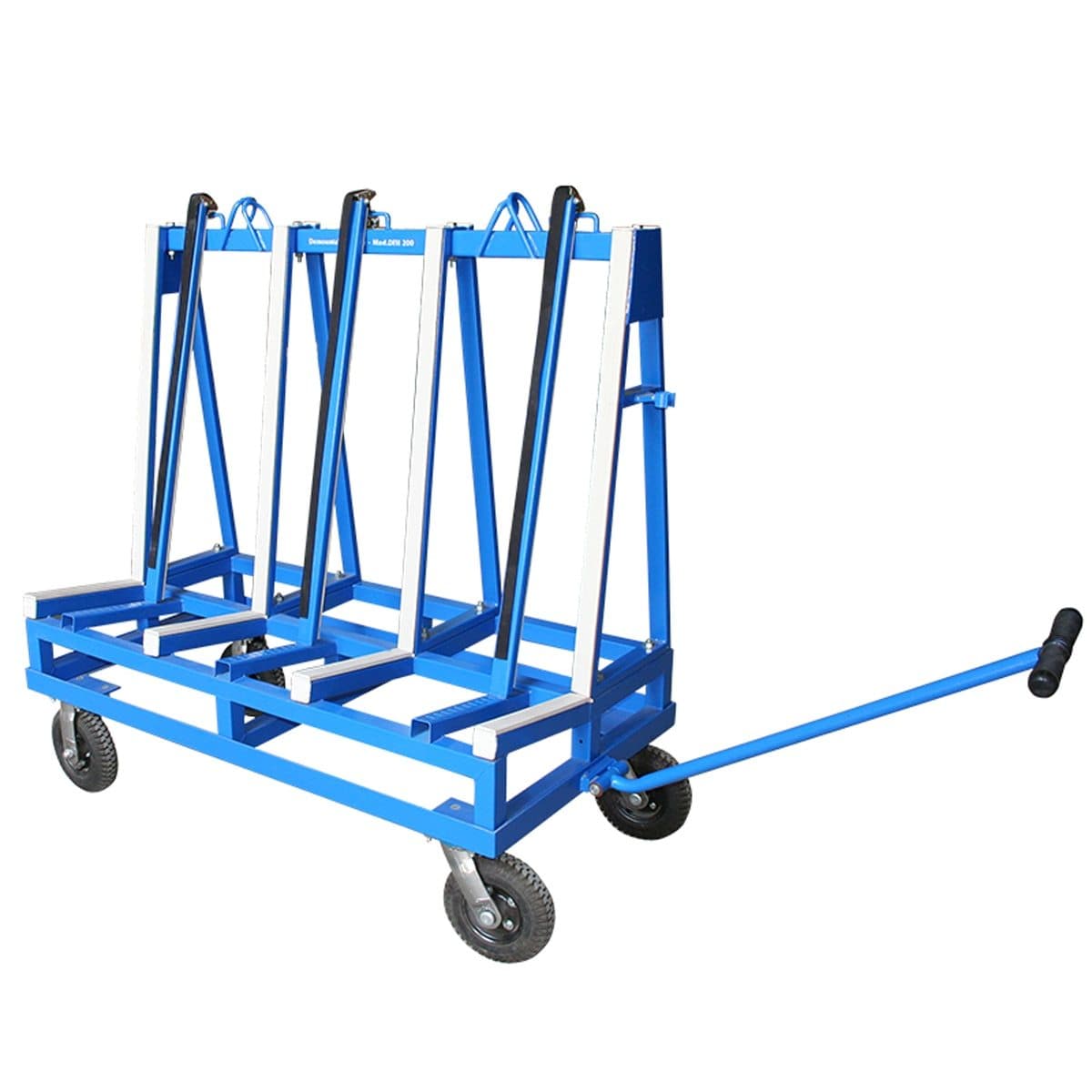

Ideal for transporting and storing material within the factory or transporting material to building sites.
Rubber is provided on frame surfaces for maximum protection. Heavy-duty wheels allow easy maneuvering of your fully loaded cart in the workshop and on the construction site. Fits inside a standard pick-up truck. Frames can be safely placed on your truck with a forklift or crane.
These demountable frames are typically stocked: DFF1500PC, DFF200, DFF400, DFH200
Features
- Sturdy structure, designed to eliminate any risk of the slab tipping over
- Slabs are placed on special rubber profiles and secured with eight adjustable locking bars
- Eight locking bars per frame mounted in slotted holes on the bottom
- The frame features two hooking points to be picked up by an overhead crane
- Built-in brackets on all underneath sides for forklift transport
- Powder-coat paint finish
Option: Frames can be hot galvanized and finished upon request.
Specifications
| Metric (mm-kg) | Imperial (inch-lb.) | |
| Width of slab storage base area on each side | 212 | 8.3″ |
| Working load limit per side | 750 | 1653 |
| Total working load limit | 1500 | 3307 |
| Net weight | 177.5 | 391 |
| Gross weight | 178 | 392 |
| Packaging dimension | L.2390xW.800xH.280 | L.94″xW.31.5″xH.11″ |
