Description

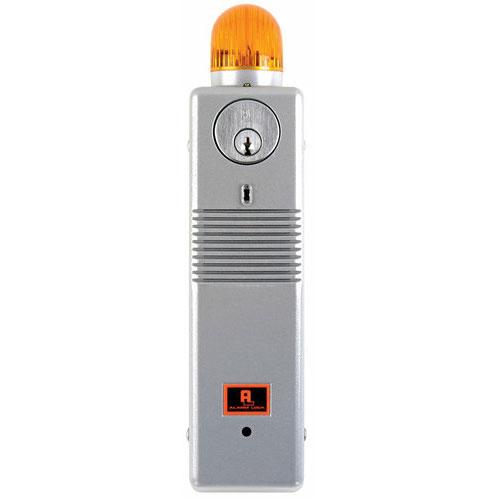

Alarm Lock PG21MB Metallic Bronze Finish Narrowstile Door Alarm
The PG21MB Door Alarm includes advanced narrow-stile microprocessor-controlled door alarms for surface mounting on a door or door frame
Typical applications include emergency fire escape doors, nursing home stairwell doors, rear restaurant and theater doors
Features
- Two selectable arming modes:
- Always armed mode – when key is turned counter clockwise to the disarm position, the key cannot be removed. To remove key, turn back to arm mode, thus keeping unit armed always
- Standard arming mode – when key is inserted turning counter clockwise will disarm and key can be removed. Turning key clockwise will arm and key can be removed
- Continuous power with the addition of an external power supply
- Multiple door monitoring permitted with built-in external reed switches
- Status Indicator – The LED will indicate RED when armed
- Entry Delay Time Options – include 15 seconds, 1 minute 15 seconds & 3 minutes 15 seconds
- Sleek model design key-activated door alarm for use on standard size and narrow stile doors
- Unauthorized use of door causes alarm to sound and activates LED indicator
- Options include continuous alarm, minute shutdown with auto reset and exit/entry delay
- Uses standard mortise cylinder
- Tamper switch supervised
- For exterior key control, optional RIM cylinder may be used
- Metallic Bronze finish
- CEM Mortise cylinder for interior arming/disarming
- CER Rim cylinder for exterior arming/disarming
Specifications
| Dimensions: | 9″ x 2 1/2″ x 2 3/8″ (22.8cm x 6.3cm x 6.8cm) (LxWxD) |
| Power Requirements: | 9-Volt Alkaline Battery (supplied) |
| Sound Device: | Piezo electronic sounder sweep siren, steady or pulsing, 110dB at 10 feet |
| Relay Contacts: | (Form-C) rated at 24VAC/DC at 1A (noninductive) |
| Warranty: | 2-Year Limited Warranty |
Certifications
| ANSI/BHMA: | Grade 1 |
