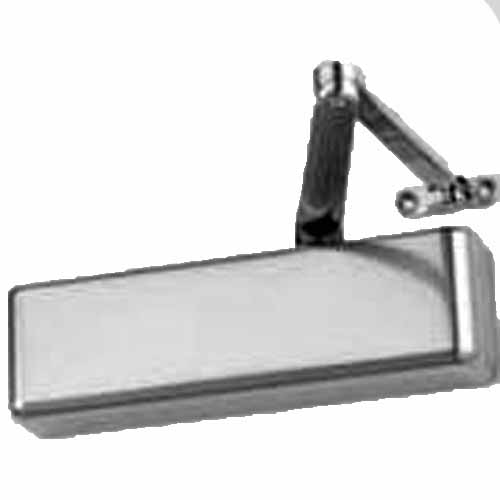

Calibre CA4001 Heavy Duty Door Closer

Description

FEATURES
■ Complies with ANSI A156.4 Grade 1.
■ Barrier Free Operation to comply with Federal Accessibility
Standards (ADA) and ANSI A117.1 (4,13,11).
■ Underwriters’ Laboratories Inc. Listed. Listed for UL10C for
positive pressure and certified to conform to UBC 7.2
(1997) BS476 for Fire Safety.
■ ADA (Handicap) multi-sized closer with adjustable spring
tension for a range of sizes adjustable after installation from
5 lbs. of Opening Force to spring Size 6.
DOOR CLOSER FUNCTIONS
CA4001…5 lb. Opening Force to Size 6. Adjustable
spring power with fully adjustable Back-Check
controlled by a separate regulating valve,
adjustable after installation.

■ Dual Speed Control Valves :
Closing and Latching speeds controlled by separate
regulating valves, adjustable after installation.
■ Universal application. Non-handed for Standard, Top Jamb,
or Parallel Arm installation (Parallel Arm Bracket included).
■ Rack and pinion control mechanism contained in a
high strength cast iron body for superior strength and
durability.
■ Stable hydraulic door check fluid for any climatic
operation and provides constant lubrication.
■ Furnished with regular arm. Hold-open arm (type
4300 optional). Hold-open arms are adjustable from 100° to
180°of door opening.
■ Series CA4000 includes high impact molded PVC
Dress Cover, Sex nut and bolt set, and blade stop spacer.
■ Attractive Baked Enamel finishes :
AL – Aluminum
DU – Storefront Bronze
