Center Hung Pivot Set, 0321 Mortise Top Pivot, 0327 Bottom Pivot Jamb Mounted

Description

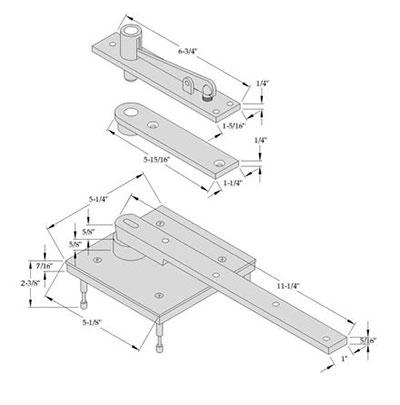

ABH 0327 Center Hung Pivot Set, 0321 Mortise Top Pivot, 0327 Bottom Pivot Jamb Mounted, Max Weight 135 Lb Door, Non Handed

The ABH 0327 Complete Center Hung Pivot Set includes a 0321 Mortise Top Pivot and a 0327 Bottom Pivot Jamb Mounted, allowing for a maximum weight capacity of 135 lbs. This set is non-handed, making it versatile for any door installation.

Features:

• 0321 Top Pivot Frame leaf mortises into the header
• Door leaf mortises into the top of the door
• 0327 Bottom Pivot Bottom leaf mortises into the side jamb and rests on the floor
• Door leaf mortises into the bottom of the door
• Non-Handed
• The pivot set is centered on the door thickness Maximum door load is 135 lbs.
• Maximum door size – 42″ x 96″
• Average weight per unit = 2 lbs
