Hinge Installation Tool 59-180

Description

• F1713 Gold Hoppe Guide hinge
• The Aluminum Hinges have a high quality powder coating finish. Brass and Aluminum Hinges are outstanding corrosion resistant materials.
• There are two types of adjustable hinges for each door panel.

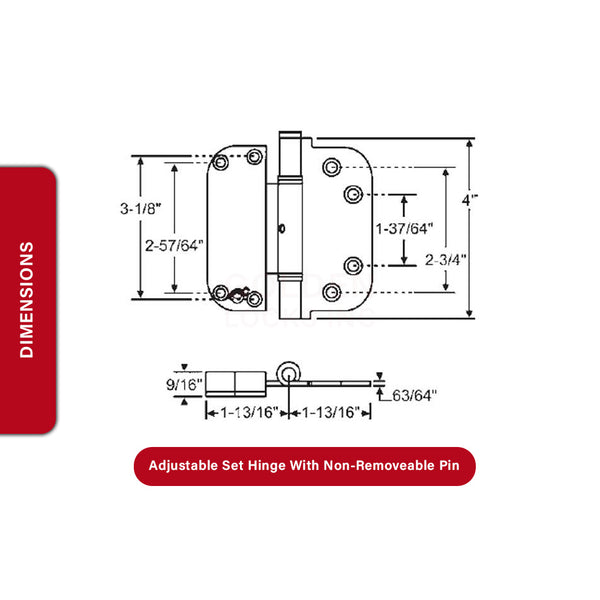

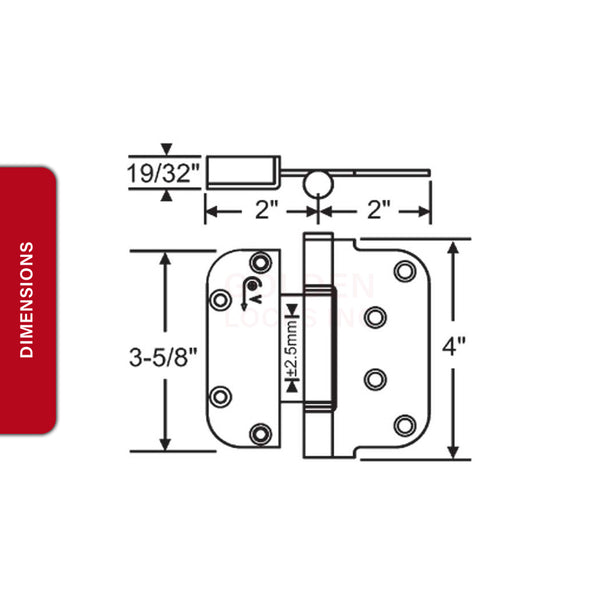

• A. Set Hinge: One per panel. This has vertical adjustment ± 3mm
• B. Guide Hinge: Minimum of two per panel. These hinges only have the horizontal adjustment ± 2mm
• When the vertical adjustment is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has 32 turns from it’s extremes, and the horizontal has 7 turns. Adjust the horizontal by turning clockwise to increase the margins. Turn counterclockwise to decrease the margins.
