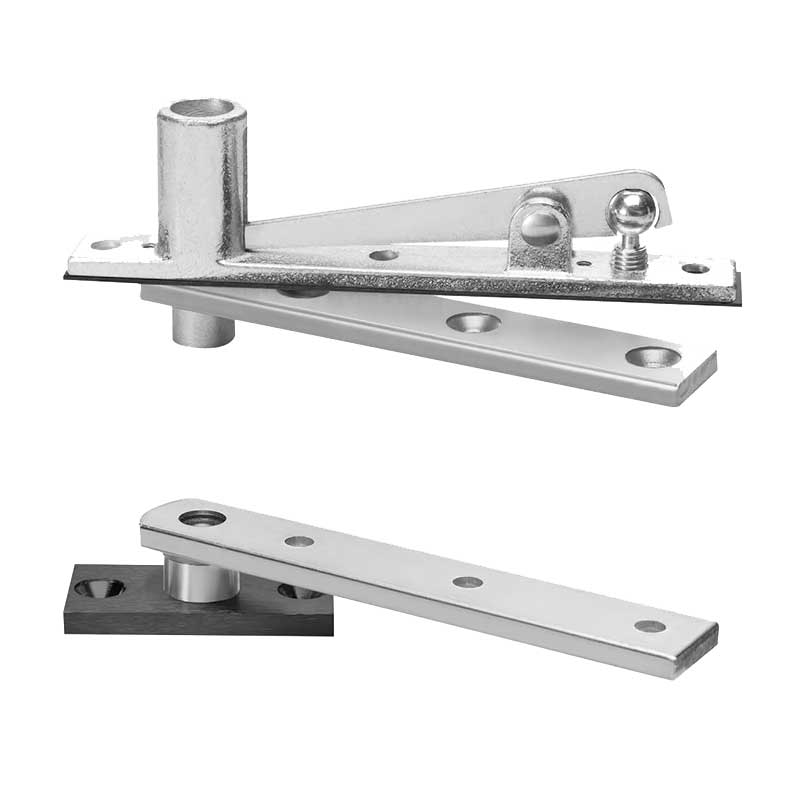

Rixson 370 Center Hung Pivot Set, Includes Top & Bottom Pivot

Description

Rixson 370 Center Hung Pivot Set, Includes 340 Top Pivot, Door Weighing Up To 500 Lbs, Non Handed

This set contains a top pivot (model 340) and can accommodate doors weighing up to 500 lbs. It is suitable for both left and right-handed doors.

Application
• Exterior or Interior Doors
• Weight to 500 lbs.
• Door Sizes up to 3’8″x 8’6″* (1118 x 2591mm)
• Non-handed

Description/Features

• 340 top pivot included
• Bottom pivot mounts directly to floor
• Pivot point centered in thickness of door
• Door must have radius on pivot edge
• Pivot set features sealed bearings for protection against weather and debris
• Not allowed for use on labeled doors and frames
• Furnished with wood and machine screws

Center hung pivots are door hanging means only. To close doors, see floor closer sections of the catalogs.
*For doors taller than 8’6″ use top pivot 345 in lieu of 340
