Set Hinge V400 56-126sch

Description

Pivot True V400 set hinge. Finish Brushed Chrome. SET hinge 1 per door needed. Special order allow 4-6 weeks before shipping. Minimum order of 12 hinges required. Non-returnable, Non-cancellable.
KEY FEATURES

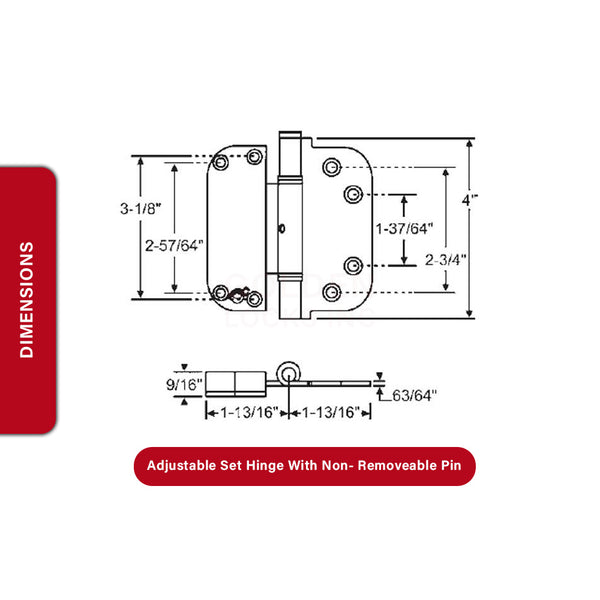

Seamlessly retrofits a 4″ X 4″ one-step pocket route with 5/8″ corner radius•
Hex head adjustment screws, not Phillips or Slotted, to provide secure tool engagement • and prevent stripping during adjustment
Screw hole locations optimized away from panel edge to prevent accidental wood splitting•
Panel leaf incorporates a unique shield to keep out debris and provide a premium • appearance in the closed position
Incorporates Teflon filled bushings for increased wear resistance•
Non-removable pin (NRP) option available for secure out-swing applications•
PERFORMANCE AND OPERATION
Adjusts 1/4″ vertically and 3/16″ horizontally•
Easily reversible for either left or right-hand hinge applications•
Innovative, patent-pending adjustment mechanism achieves extremely low adjustment • torque with a standard 3/32″ hex wrench
Exceeds BHMA – grade 3 standards for wood, vinyl, aluminum and steel doors.
